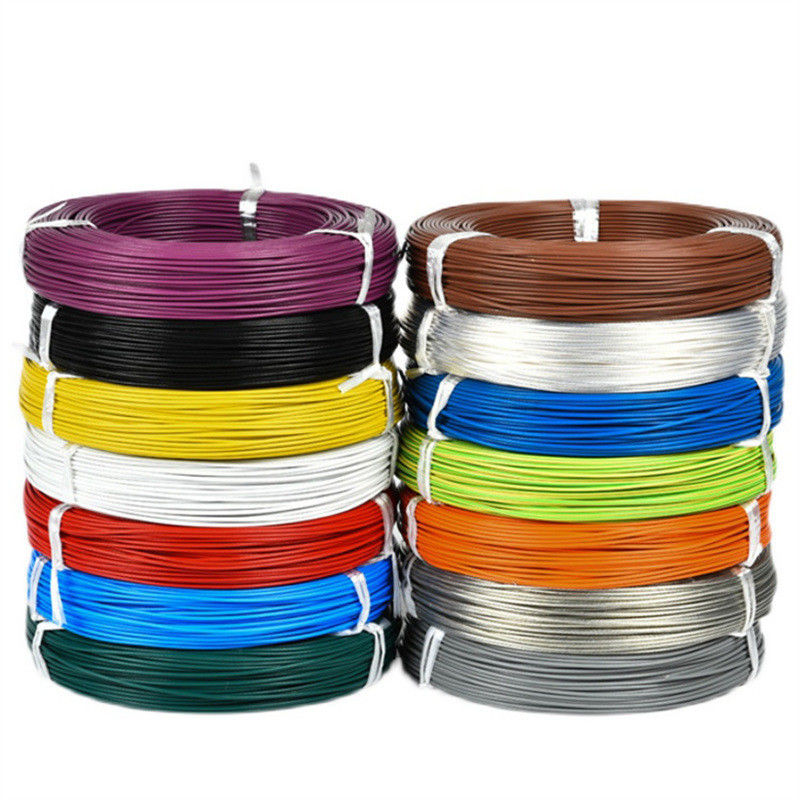

High Temperature Silicone Tinned Copper Electric Wire Cable 1424 LPCB

Name: High Temperature Silicone Tinned Copper Electric Wire Cable 1424 LPCB
Brand: Refport
SKU: Silicone
Price: 0.05 USD
Availability: InStock
Rating: 4.6 (143 reviews)

Product Details

Place of Origin: Zhejiang, China

Brand Name: Refport

Certification: CE, RoHS, CCC, 1424 LPCB

Model Number: Silicone

Payment & Shipping Terms

Minimum Order Quantity: 10000 meters

Price: $0.05/meters >=10000 meters

Packaging Details: 100m/box,100m/plastic spool,200m/roll, or 305m/wooden spool,500m/drum

Supply Ability: 5000000000 Meter/Meters per Year

Get Best Price

Product Details

Product Description

Highlight:

Type:	Bare	Application:	Heating
Conductor Material:	Tinned Copper	Conductor Type:	Stranded
Insulation Material:	Silicone	Specification:	Customizable
Wire Core Material:	Bare Copper Wire	Cable Core:	4 6 7 8 10 12 14 16 18 20 22 24 AWG
Drain Wire:	1/0.5tc Mm	Transport Package:	Shipping Box Or Wooden Pallet
Production Capacity:	5000000000

Type:	Bare
Application:	Heating
Conductor Material:	Tinned Copper
Conductor Type:	Stranded
Insulation Material:	Silicone
Specification:	Customizable
Wire Core Material:	Bare Copper Wire
Cable Core:	4 6 7 8 10 12 14 16 18 20 22 24 AWG
Drain Wire:	1/0.5tc Mm
Transport Package:	Shipping Box Or Wooden Pallet
Production Capacity:	5000000000

High Temperature Silicone Tinned Copper Electric Wire Cable 1424 LPCB

Product Description

Characteristics / Uses:
Excellent high temperature resistance, low temperature resistance, excellent electrical insulation properties, excellent chemical stability, high voltage resistance, aging resistance, long service life, and soft, easy to install.

Product Characteristics:
1,Rated voltage:300/500V
2,Operating temperature:-60~+180ºC.
3,Conductor:bare copper wire or tinned copper stranded wire
4,Insulation:silicone rubber
5,Color:customizable

Specification

Standard Cross Section (mm²)	Conductor Structure	Insulation Thickness (mm)	Average Outside Diameter (mm)	Maximum value of conductor resistance at 20ºC (Ω/km)
0.10	12×0.10	0.45	1.30	188
0.20	12×0.15	0.65	1.80	95
0.30	16×0.15	0.60	1.85	71.2
0.40	23×0.15	0.50	1.90	49.6
0.50	28×0.15	0.60	2.20	40.1
0.75	42×0.15	0.70	2.60	26.7
1.0	32×0.20	0.75	2.80	20.0
1.5	48×0.20	0.75	3.10	13.7
2.0	40×0.25	0.85	3.40	9.90
2.5	49×0.25	0.85	3.70	8.21
4.0	56×0.30	0.70	4.30	5.09
6.0	84×0.30	0.80	5.20	3.39
10	84×0.40	1.00	6.60	1.95
16	126×0.40	1.20	8.40	1.24
25	196×0.40	1.40	10.40	0.795

Why Choose Us

Ningbo Exact Cables & Wire Co., Ltd. is a pioneering manufacturer with over 12 years of experience in the cable industry in China. We specialize in the professional production and supply of the following products: Fire Alarm Cables, Fire Resistant Cables, Alarm/Security Cables, Speaker Cables, Coaxial Cables, Data Cables, Cabinets, Fiber Optics and Accessories, High Temperature Wire, HDMI Cables, Telecommunication Cables, Telephone Cables, Power Cables, and a variety of other cables and wires. Our products, branded as "ExactCables," are certified by the China CCC, CPR, UL, CE, RoHS, ETL, and REACH. Our current production capacity stands at approximately 500,000,000 meters per year.

Customer Photos

Exhibition

Product packaging

Certifications

FAQ

Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!
