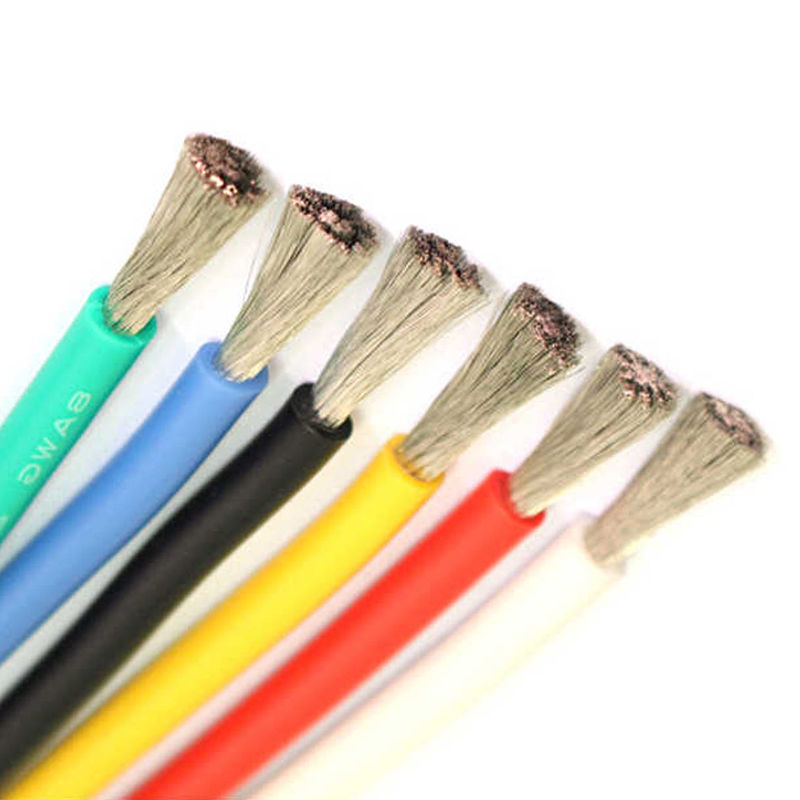

Conductor Material Tinned Copper Wire For Cables Tflon Fire Resistant

Name: Conductor Material Tinned Copper Wire For Cables Tflon Fire Resistant
Brand: Refport
SKU: Tflon
Price: 0.05 USD
Availability: InStock
Rating: 4.7 (171 reviews)

Product Details

Place of Origin: Zhejiang, China

Brand Name: Refport

Certification: CE, RoHS, CCC, 1424 LPCB

Model Number: Tflon

Payment & Shipping Terms

Minimum Order Quantity: 10000 meters

Price: $0.05/meters >=10000 meters

Get Best Price

Product Details

Product Description

Highlight:

Type:	Bare	Application:	Heating
Conductor Material:	Tinned Copper	Conductor Type:	Stranded
Insulation Material:	PTFE	Specification:	Customizable
Wire Core Material:	Bare Copper Wire	Cable Core:	4 6 7 8 10 12 14 16 18 20 22 24 AWG
Drain Wire:	1/0.5tc Mm	Transport Package:	Shipping Box Or Wooden Pallet
Production Capacity:	5000000000

Type:	Bare
Application:	Heating
Conductor Material:	Tinned Copper
Conductor Type:	Stranded
Insulation Material:	PTFE
Specification:	Customizable
Wire Core Material:	Bare Copper Wire
Cable Core:	4 6 7 8 10 12 14 16 18 20 22 24 AWG
Drain Wire:	1/0.5tc Mm
Transport Package:	Shipping Box Or Wooden Pallet
Production Capacity:	5000000000

Conductor Material Tinned Copper Wire For Cables Tflon Fire Resistant

Product Description

Specification

Nominal cross-section (mm2)	Conductor structure Roots/wire diameter (mm)	Insulation thickness (mm)	Average Outside Diameter (mm)	DC resistance of conductor at 20℃ (Ω/km)	Package length (m)
0.014	7/0.05	0.15	0.45	1343	500
0.035	7/0.08	0.15	0.60	525	500
0.05	7/0.10	0.15	0.60	330	500
0.08	7/0.12	0.20	0.78	227	500
0.12	7/0.15	0.20	0.85	150	500
0.20	7/0.20	0.25	1.10	83.5	200
0.35	19/0.16	0.25	1.30	49.5	200
0.50	19/0.18	0.25	1.40	36.0	200
0.75	19/0.23	0.25	1.70	22.7	200
1.0	19/0.26	0.25	1.80	19.0	200
1.20	19/0.28	0.30	2.0	15.3	200
1.50	19/0.32	0.30	2.20	11.7	200
2.0	19/0.37	0.30	2.45	9.45	100
2.5	19/0.41	0.40	2.95	6.86	100
4.0	37/0.37	0.40	3.40	4.51	100
6.0	37/0.45	0.50	4.20	3.05	100
8.0	133/0.28	0.50	5.20	2.16	100
10	133/0.32	0.50	5.80	1.68	100
16	133/0.39	0.60	7.00	1.13	100
20	133/0.45	0.60	8.0	0.886	100
25	196/0.40	0.6	8.8	0.734	100
35	494/0.30	0.7	10.4	0.511	100
50	396/0.40	0.8	12.2	0.358	100
70	551/0.40	1.0	14.6	0.270	100
95	760/0.40	1.2	17.2	0.210	100
0.03	1/0.20	0.15	0.50	560	500
0.05	1/0.26	0.17	0.60	386.9	500
0.07	1/0.30	0.20	0.70	245	500
0.12	1/0.40	0.20	0.80	146.9	500
0.2	1/0.50	0.25	1.0	94	500
