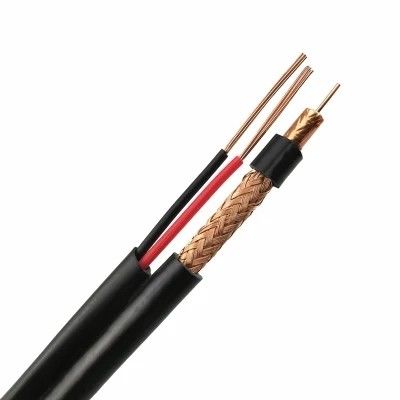

305m RG59 with Power CCTV Camera Rg59 2c Siamese Coaxial Communication Cable Manufacture

Name: 305m RG59 with Power CCTV Camera Rg59 2c Siamese Coaxial Communication Cable Manufacture
Brand: Ningbo Exact Cables & Wire Co., Ltd.
SKU: Rg59
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Zhejiang

Brand Name: ExactCables

Certification: CE, RoHS, CCC, CPR

Model Number: Rg59

Payment & Shipping Terms

Price: $0.20/meters >=1 meters

Packaging Details: 100m/box,100m/plastic spool,200m/roll, or 305m/wooden spool,500m/drum

Supply Ability: 5000000000 Meter/Meters per Year

Get Best Price

Product Details

Product Description

Highlight:

Type:	Power Cable	Number Of Conductors:	1
Model:	Rg59	Specification:	RG59
Inner Conductor:	0.81 Bare Copper/ CCS	Foil:	Al/ Copper Foil
Production Capacity:	5000000000	Jacket:	PE/ PVC/ LSZH
Transport Package:	Wooden Reel Or Customized	Insulation:	3.66 Foam PE/Solid PE
Braiding:	(40-95% Coverage)Al/ CCA/ Copper Braiding	Port:	Ningbo

Type:	Power Cable
Number Of Conductors:	1
Model:	Rg59
Specification:	RG59
Inner Conductor:	0.81 Bare Copper/ CCS
Foil:	Al/ Copper Foil
Production Capacity:	5000000000
Jacket:	PE/ PVC/ LSZH
Transport Package:	Wooden Reel Or Customized
Insulation:	3.66 Foam PE/Solid PE
Braiding:	(40-95% Coverage)Al/ CCA/ Copper Braiding
Port:	Ningbo

305m RG59 with Power CCTV Camera Rg59 2c Siamese Coaxial Communication Cable Manufacture

Product Description

Inner Conductor: 1/0.81mm Bare Copper
lnsulation: 3.70mm Foamed Polyethylene
Shield: BC or CCS wire Braid
Jacket: 6.OOmm PVC
TWISTED PAIR CABLE (S): Inner Conductor: 7/0.38mm BC or CCA
lnsulation: 1.60mm PVC or PE
Jacket: 4.80mm PVC
Flammability grade: CMX, CM
Operating temperature: -25~70℃
Reference Standard: MIL-C-17
ELECTRICAL CHARACTERISTICS
Impedance: 75±3Ω
Capacitance: 55±3pF/m
Max Attenuation: (20℃)

Specification

Brand Name	ExactCables
Specification	RG59
Inner Conductor	0.81 Bare Copper/ CCS
Foil	Al/ Copper Foil
Certification	CE, RoHS, CCC, CPR
Production Capacity	5000000000
Jacket	PE/ PVC/ LSZH
Transport Package	Wooden Reel or Customized
Insulation	3.66 Foam PE/Solid PE
Braiding	(40-95% coverage)Al/ CCA/ Copper braiding

Why Choose Us

We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industry in China.We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Datacables, HDMI cables, Telecommunication cables, Telephone cables, Power cables ,accessory and other various of cables and wires.Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current productioncapacity is about 500,000,000 meters per year.

Customer Photos

Exhibition

Product packaging

Certifications

FAQ

Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!
