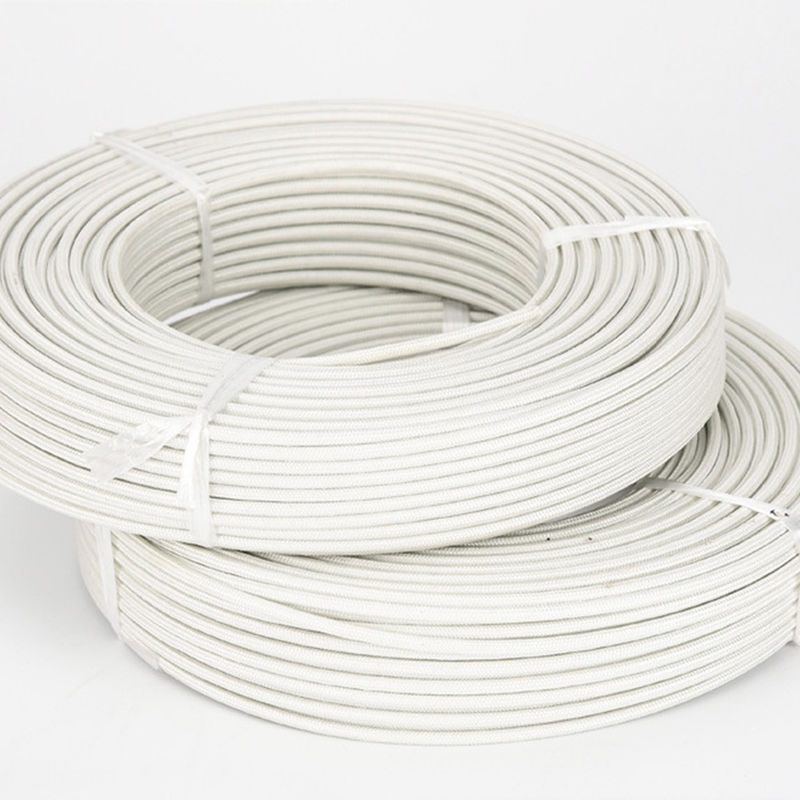

ExactCables GN500 High Temperature Fire Resistance Heating Wire for 300/500V Systems

Name: ExactCables GN500 High Temperature Fire Resistance Heating Wire for 300/500V Systems
Brand: Refport
SKU: GN500
Price: 0.05 USD
Availability: InStock
Rating: 4.9 (198 reviews)

Product Details

Place of Origin: Zhejiang, China

Brand Name: Refport

Certification: CE, RoHS, CCC, 1424 LPCB

Model Number: GN500

Payment & Shipping Terms

Minimum Order Quantity: 10000 meters

Price: $0.05/meters >=10000 meters

Get Best Price

Product Details

Product Description

Highlight:

Type:	Bare	Application:	Heating
Conductor Material:	Tinned Copper	Conductor Type:	Stranded
Insulation Material:	Fiber Glass	Rated Voltage:	300/500V
Specification:	Customizable	Wire Core Material:	Bare Copper Wire
Cable Core:	4 6 7 8 10 12 14 16 18 20 22 24 AWG	Drain Wire:	1/0.5tc Mm
Transport Package:	Shipping Box Or Wooden Pallet	Production Capacity:	5000000000

Type:	Bare
Application:	Heating
Conductor Material:	Tinned Copper
Conductor Type:	Stranded
Insulation Material:	Fiber Glass
Rated Voltage:	300/500V
Specification:	Customizable
Wire Core Material:	Bare Copper Wire
Cable Core:	4 6 7 8 10 12 14 16 18 20 22 24 AWG
Drain Wire:	1/0.5tc Mm
Transport Package:	Shipping Box Or Wooden Pallet
Production Capacity:	5000000000

ExactCables GN500 High Temperature Fire Resistance Heating Wire for 300/500V Systems

Product Description

Characteristics / Uses:
This product is metallurgy, thermal engineering, petroleum, chemical industry, natural gas, kerosene and other special
environments, the need for fire performance of a variety of electrical installations in the wire and cable.

Product Characteristics:
Product Characteristics
Rated voltage:300/500V
Temperature range: 500ºC, 600ºC for a short period of time.
Conductor: pure nickel stranded wire
Color: earth yellow, can pick black yarn, red yarn, etc..

Specification

Standard Cross Section (mm²)	Conductor Structure	Insulation Thickness (mm)	Average Outside Diameter (mm)	Maximum value of conductor resistance at 20ºC (Ω/km)
0.10	12×0.10	0.45	1.30	188
0.20	12×0.15	0.65	1.80	95
0.30	16×0.15	0.60	1.85	71.2
0.40	23×0.15	0.50	1.90	49.6
0.50	28×0.15	0.60	2.20	40.1
0.75	42×0.15	0.70	2.60	26.7
1.0	32×0.20	0.75	2.80	20.0
1.5	48×0.20	0.75	3.10	13.7
2.0	40×0.25	0.85	3.40	9.90
2.5	49×0.25	0.85	3.70	8.21
4.0	56×0.30	0.70	4.30	5.09
6.0	84×0.30	0.80	5.20	3.39
10	84×0.40	1.00	6.60	1.95
16	126×0.40	1.20	8.40	1.24
25	196×0.40	1.40	10.40	0.795

Why Choose Us

Ningbo Exact Cables & Wire Co., Ltd. is a pioneering manufacturer with over 12 years of experience in the cable industry in China. We specialize in the professional production and supply of the following products: Fire Alarm Cables, Fire Resistant Cables, Alarm/Security Cables, Speaker Cables, Coaxial Cables, Data Cables, Cabinets, Fiber Optics and Accessories, High Temperature Wire, HDMI Cables, Telecommunication Cables, Telephone Cables, Power Cables, and a variety of other cables and wires. Our products, branded as "ExactCables," are certified by the China CCC, CPR, UL, CE, RoHS, ETL, and REACH. Our current production capacity stands at approximately 500,000,000 meters per year.

Customer Photos

Exhibition

Product packaging

Certifications

FAQ

Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!
