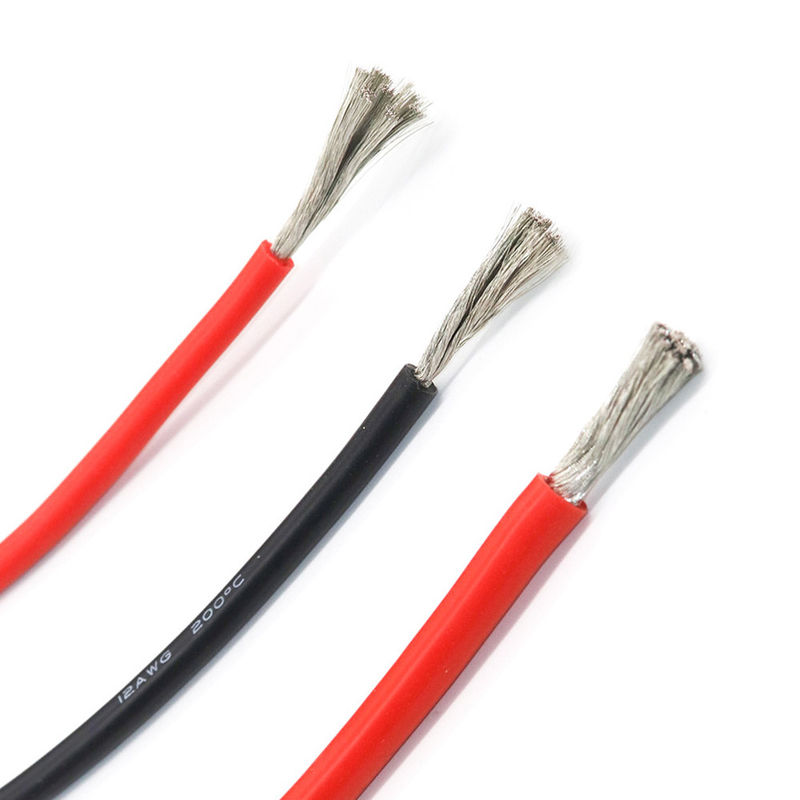

Silicone Insulated High Temperature Stranded Wire Exactcables Customization Options

Name: Silicone Insulated High Temperature Stranded Wire Exactcables Customization Options
Brand: Ningbo Exact Cables & Wire Co., Ltd.
SKU: Silicone
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Zhejiang, China

Brand Name: Refport

Certification: CE, RoHS, CCC, 1424 LPCB

Model Number: Silicone

Payment & Shipping Terms

Minimum Order Quantity: 10000 meters

Price: $0.05/meters >=10000 meters

Packaging Details: 100m/box,100m/plastic spool,200m/roll, or 305m/wooden spool,500m/drum

Supply Ability: 5000000000 Meter/Meters per Year

Get Best Price

Product Details

Product Description

Highlight:

Type:	Bare	Application:	Heating
Conductor Material:	Tinned Copper	Conductor Type:	Stranded
Insulation Material:	Silicone	Specification:	Customizable
Wire Core Material:	Bare Copper Wire	Cable Core:	4 6 7 8 10 12 14 16 18 20 22 24 AWG
Drain Wire:	1/0.5tc Mm	Transport Package:	Shipping Box Or Wooden Pallet
Production Capacity:	5000000000

Type:	Bare
Application:	Heating
Conductor Material:	Tinned Copper
Conductor Type:	Stranded
Insulation Material:	Silicone
Specification:	Customizable
Wire Core Material:	Bare Copper Wire
Cable Core:	4 6 7 8 10 12 14 16 18 20 22 24 AWG
Drain Wire:	1/0.5tc Mm
Transport Package:	Shipping Box Or Wooden Pallet
Production Capacity:	5000000000

Silicone Insulated High Temperature Stranded Wire Exactcables Customization Options

Product Description

Characteristics / Uses:
Excellent high temperature resistance, low temperature resistance, excellent electrical insulation properties, excellent chemical stability, high voltage resistance, aging resistance, long service life, and soft, easy to install.

Product Characteristics:
1,Rated voltage:300/500V
2,Operating temperature:-60~+180ºC.
3,Conductor:bare copper wire or tinned copper stranded wire
4,Insulation:silicone rubber
5,Color:customizable

Specification

Standard Cross Section (mm²)	Conductor Structure	Insulation Thickness (mm)	Average Outside Diameter (mm)	Maximum value of conductor resistance at 20ºC (Ω/km)
0.10	12×0.10	0.45	1.30	188
0.20	12×0.15	0.65	1.80	95
0.30	16×0.15	0.60	1.85	71.2
0.40	23×0.15	0.50	1.90	49.6
0.50	28×0.15	0.60	2.20	40.1
0.75	42×0.15	0.70	2.60	26.7
1.0	32×0.20	0.75	2.80	20.0
1.5	48×0.20	0.75	3.10	13.7
2.0	40×0.25	0.85	3.40	9.90
2.5	49×0.25	0.85	3.70	8.21
4.0	56×0.30	0.70	4.30	5.09
6.0	84×0.30	0.80	5.20	3.39
10	84×0.40	1.00	6.60	1.95
16	126×0.40	1.20	8.40	1.24
25	196×0.40	1.40	10.40	0.795
